REAL JB PROJECT · SPECIALIST HANDLING
700kg Marble Sculpture Removal
Installed in 1990 · 2.06m tall · approx. 1,060kg combined load
The sculpture originally entered the building upright in its larger 1990 lift. The replacement lift had a smaller car. JB secured the sculpture to a 360kg stair climber and mechanically tilted it to pass into the reduced space.
- SCULPTURE
- 700 kg
- HEIGHT
- Approx. 2.06 m
- EQUIPMENT
- Approx. 360 kg
- COMBINED LOAD
- Approx. 1,060 kg
The complete handling method
A route that had changed since 1990
The 700 kg marble sculpture had been placed in the building in 1990, when the original lift was large enough to carry it standing upright. The lift was later replaced with a smaller car, so the original installation method could not be reversed for the removal.
Planning around the replacement lift

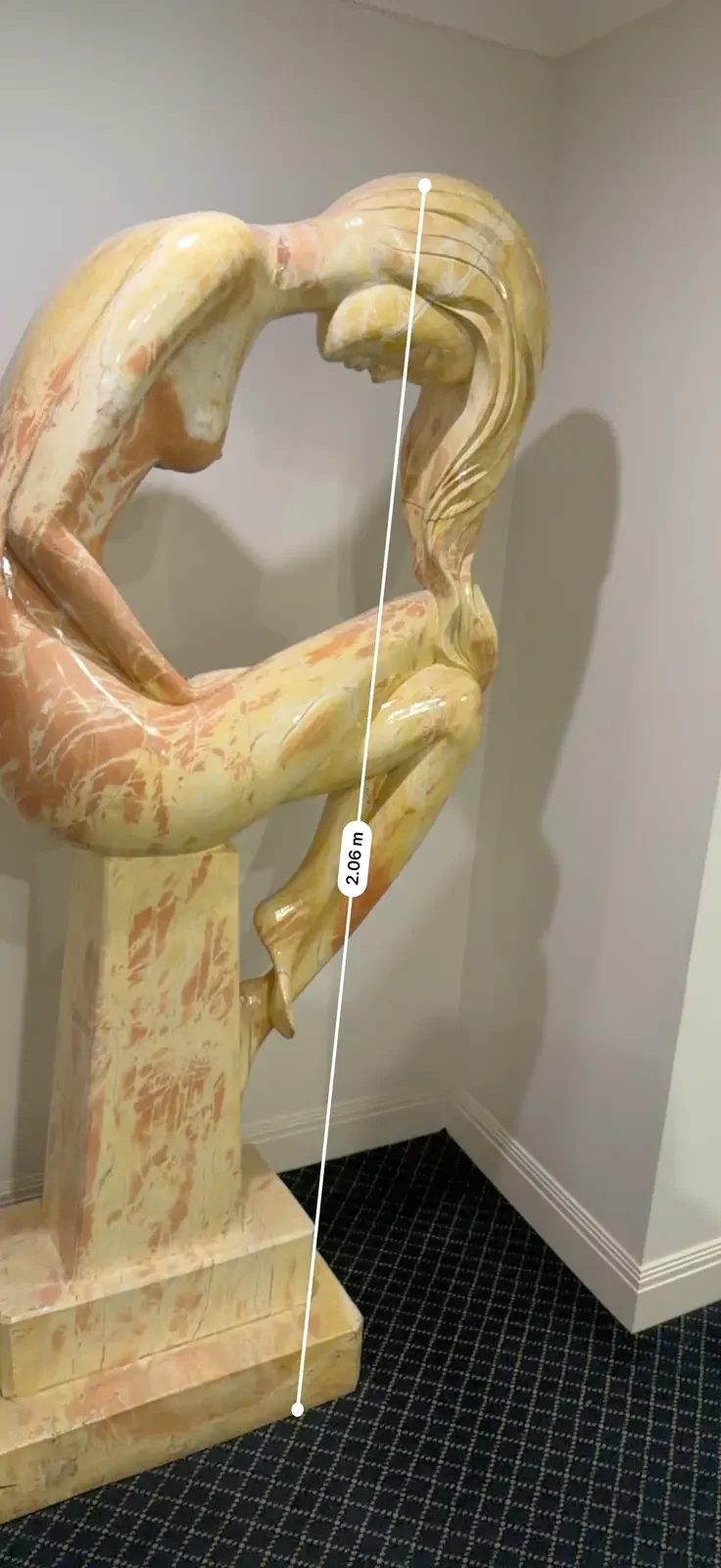

The sculpture measured approximately 2.06 metres high. JB assessed its height, weight, base, corridor route, lift opening, internal car space and the clearance needed to change its angle. Lift technicians attended the operation to support safe coordination with the lift while the load was brought inside.
Protecting and securing the sculpture
The corridor floor and lift interior were protected before movement began. Padded blankets protected the contact areas between the marble and equipment. Multiple restraints secured the sculpture and its heavy base to the stair climber while the crew controlled the change of angle.
Just over one tonne under control

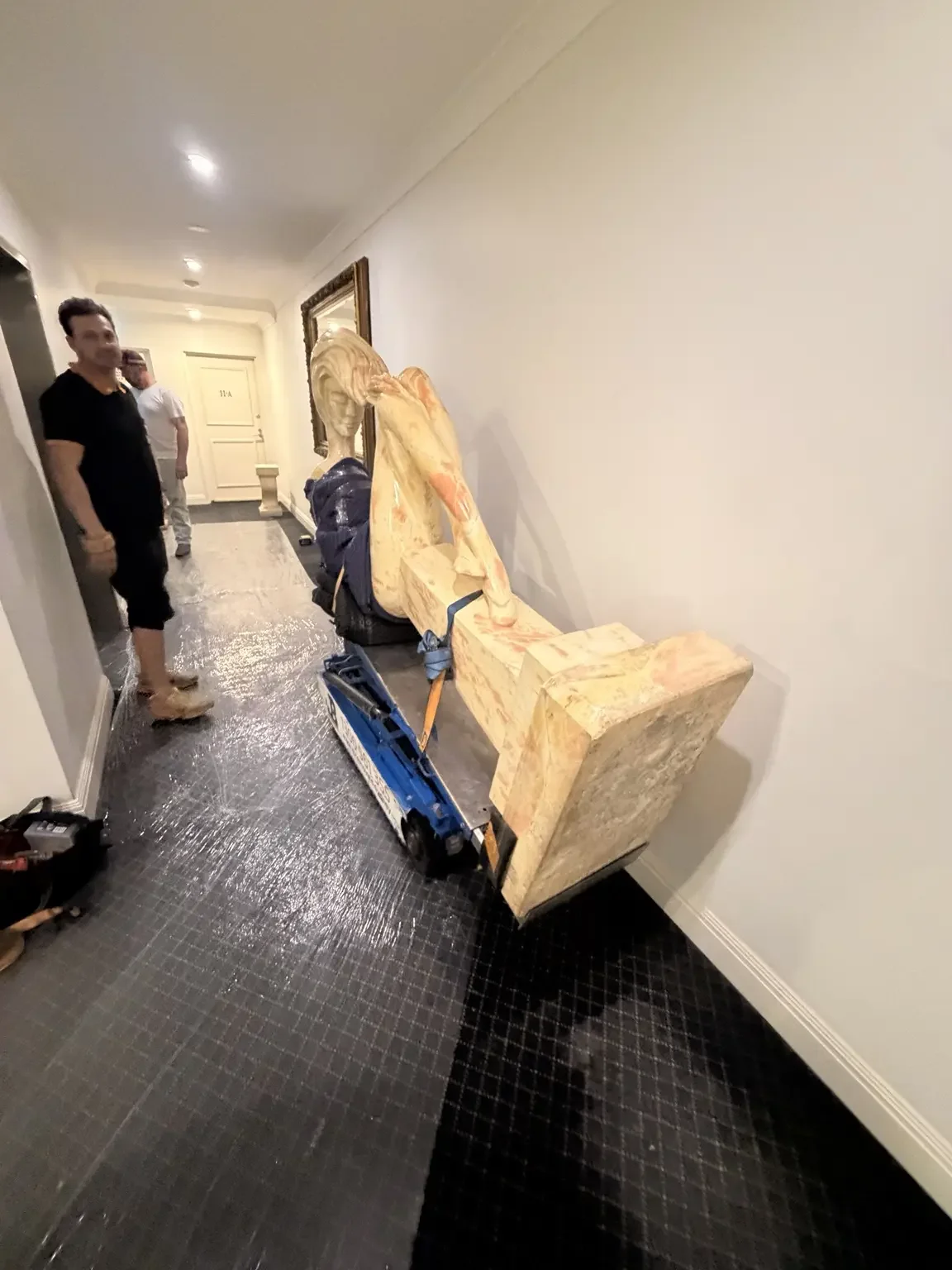

JB used the stair climber as a mechanical tilting and load-control platform rather than attempting to tip the sculpture manually. The sculpture weighed 700 kg and the stair climber approximately 360 kg. Together they created a load of about 1,060 kg, before adding the crew and ancillary protection.
The lift entry and result
The stair climber progressively lowered the sculpture from its standing position while maintaining support through the centre of the load. Once the profile matched the smaller lift, the team guided the protected sculpture across the threshold and fully into the car with the lift technicians present. The restricted-lift removal was completed safely.
Project photographs
Photographs from this JB project. Select an image to view its full frame.
